Insights: Health

Nerdio Manager's Health page provides insights into the overall health of your Nerdio Manager and Azure environment.

To view health insights:

1. In Nerdio Manager, navigate to Insights > Health.

   The Health page provides dashlets reflecting a specific component in your environment with relevant data for the last 30 days.

2. For dashlets, you can do the following:

   • Export : Select to download the corresponding report data. A dropdown appears allowing you to export to.csv, .pdf, or .png format.

   • Expand : Select to view the dashlet full screen.

   • Refresh : Select to refresh the data in the dashlet.

   • Info : Select to review the tooltip.

   • View metadata : Select to view metadata in a separate dialog box. Not available for the Nerdio Components Health and Monitoring Agent dashlets.

   • Hover over: Hover over any location on the dashlet to view the details of that specific data point.

   • Drill down: For the Nerdio Components Health dashlet, select the status box to view detailed component status. For the Monitoring Agent dashlet, select a chart segment to view the corresponding host list.

The following health insights are available:

• Nerdio components health

• Monitoring agent

• Connection health

• App Service plan CPU usage

• Databases CPU usage

• App Service plan memory usage

• Databases DTU usage

• App Service plan data

• Databases successful connections

Nerdio components health

This dashlet provides insights into components that impact the operation and performance of Nerdio Manager. It displays metrics using a RAG status, red (unhealthy), amber (warning), or green (healthy) to indicate the overall health of the environment.

Select the info icon next to a component's status to view how the RAG status is defined.

To view detailed component status you can select the status box (HEALTHY, WARNING, UNHEALTHY), next to each component.

List of Components

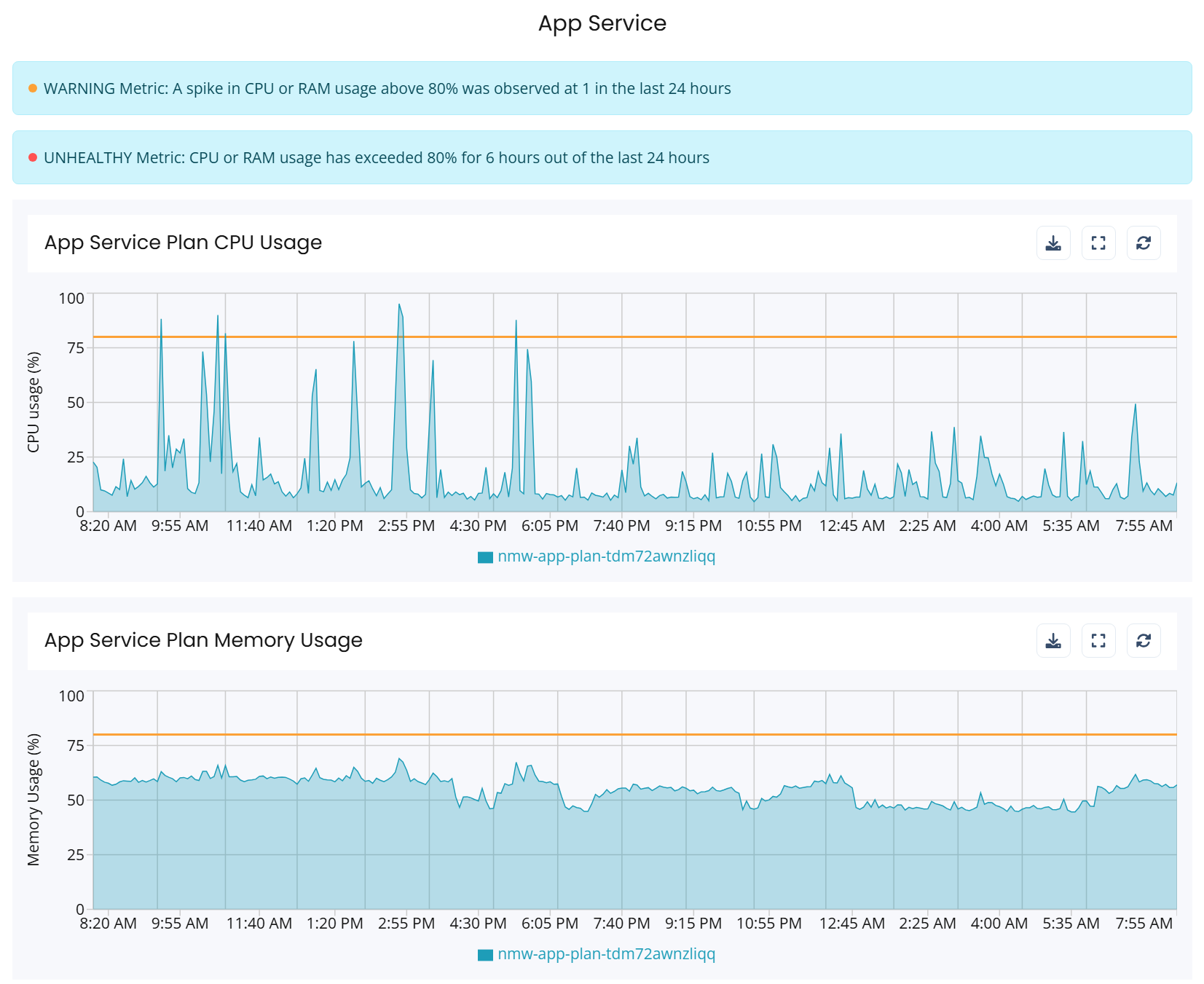

      App service

The App service indicator highlights issues with Nerdio Manager.

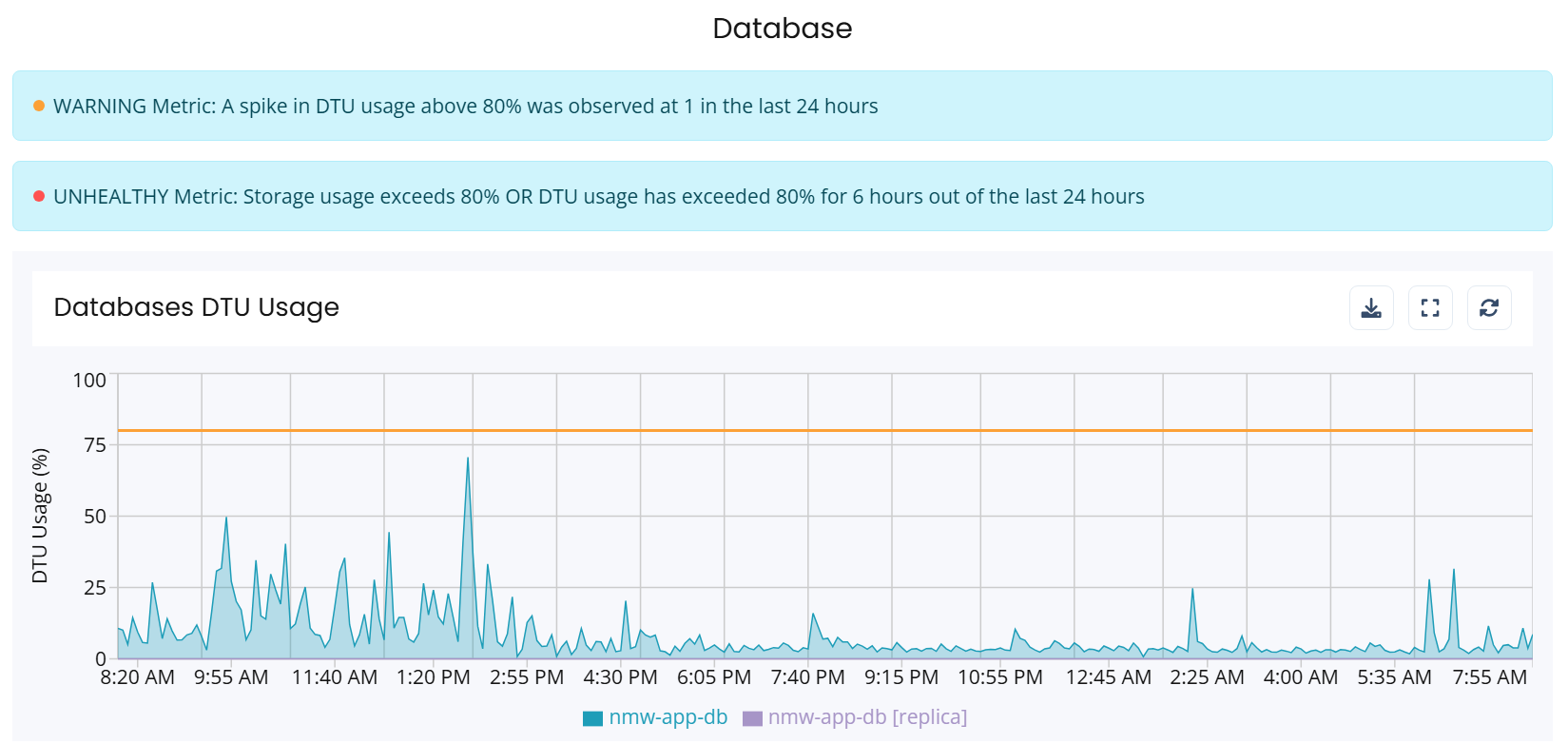

      Database

The database status indicator displays the status of the Nerdio Manager database.

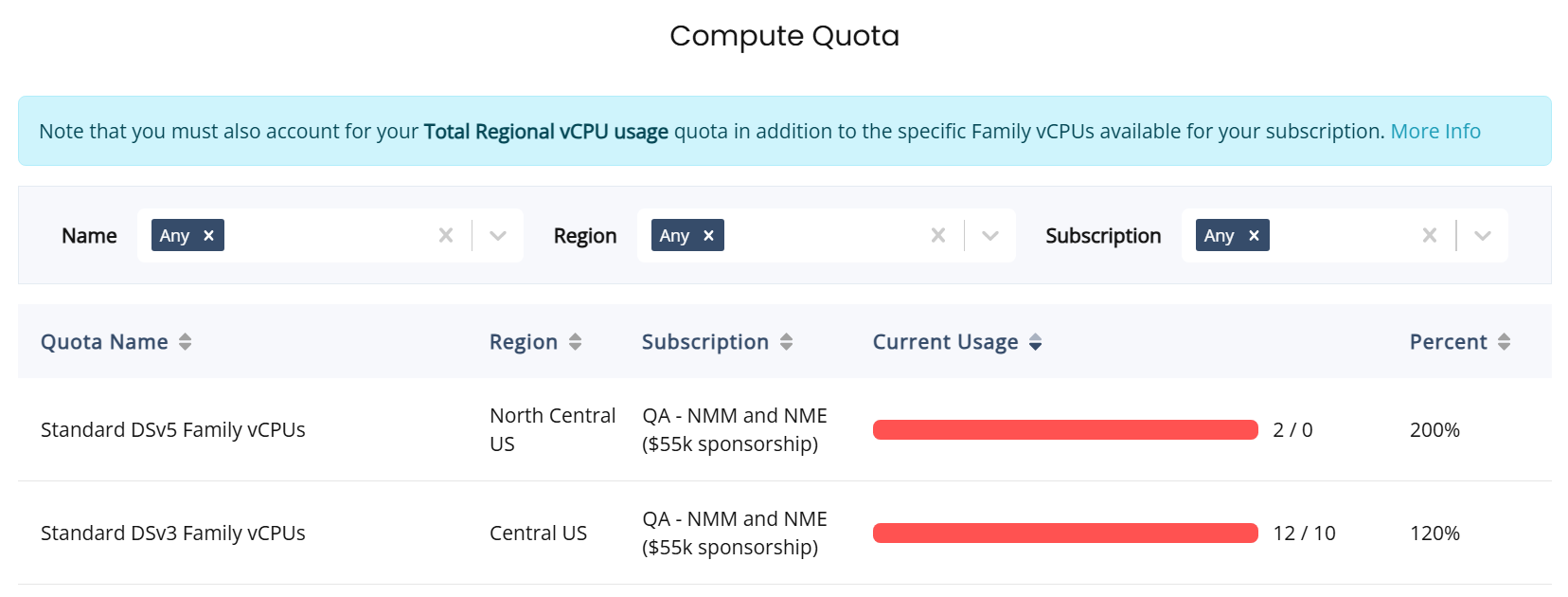

      Compute Quota

The compute quota status indicator displays the current vCPU usage

You can filter the information by selecting Name (vCPU family including total regional vCPUs), Region, or Subscription and, from the drop-down list, selecting the appropriate variable to filter by.

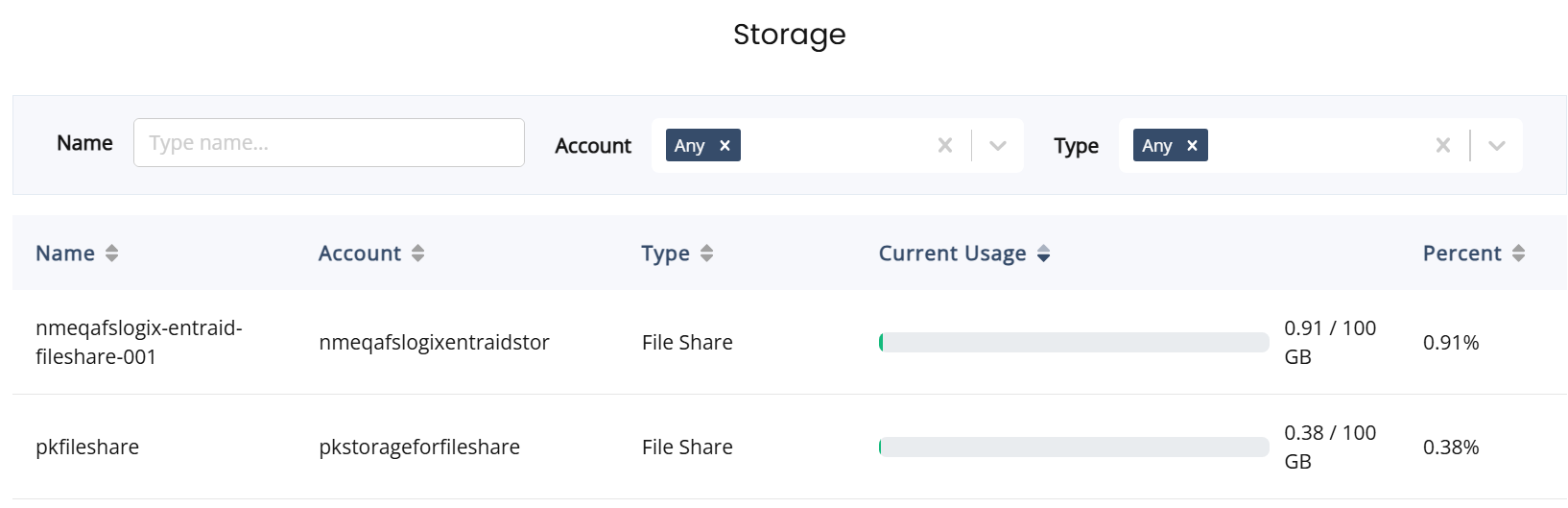

      Storage

The storage status indicator displays the current status of the Azure Files Shares and the Azure NetApp Files Shares.

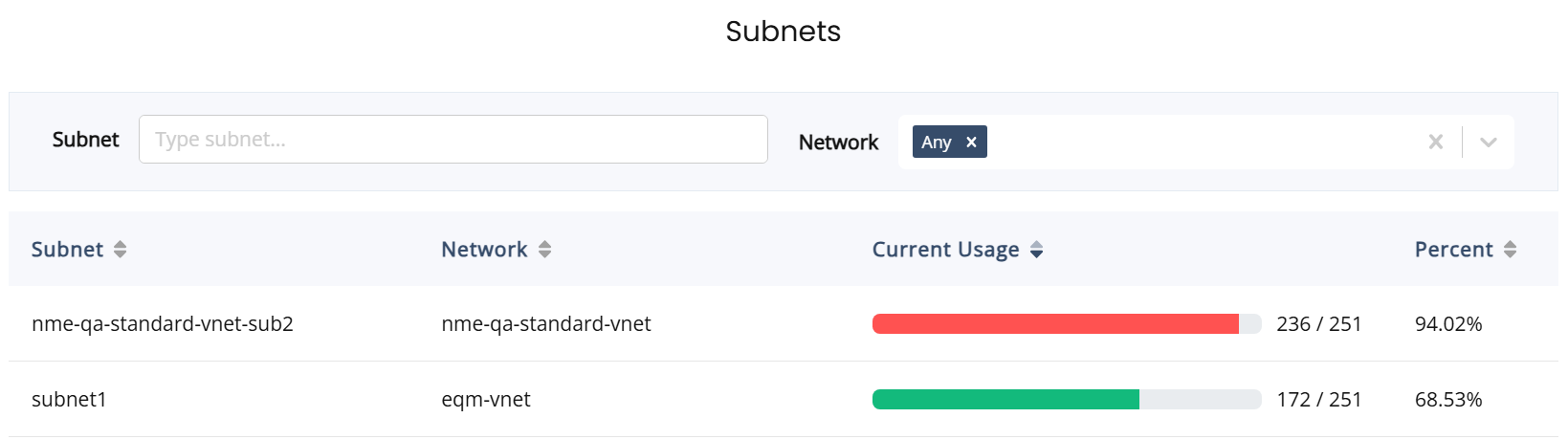

      Subnets

The subnets status indicator displays the current IP subnet availability.

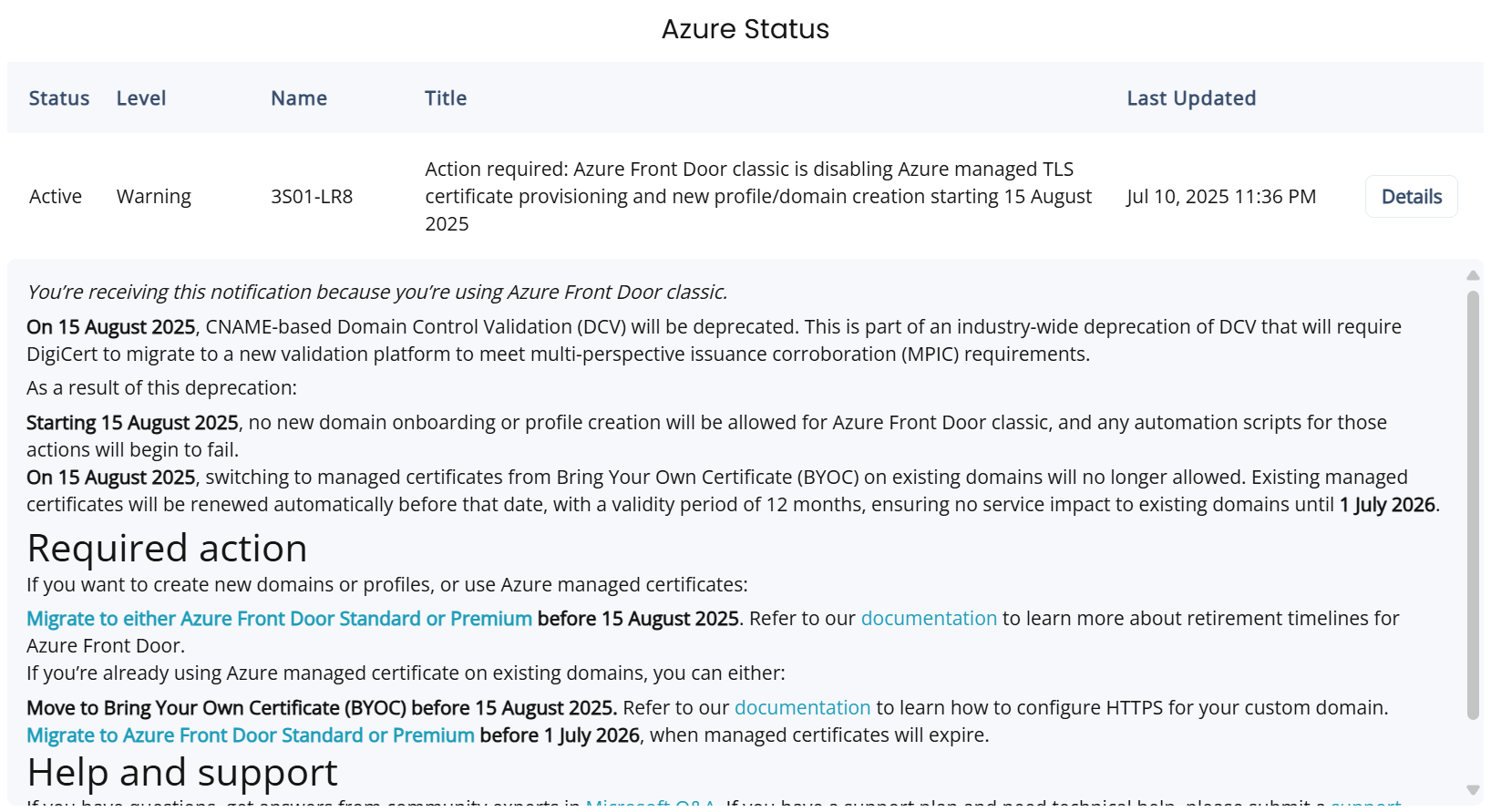

      Azure Status

The Azure status indicator displays the current status of Azure services that are directly associated with your managed Azure resources.

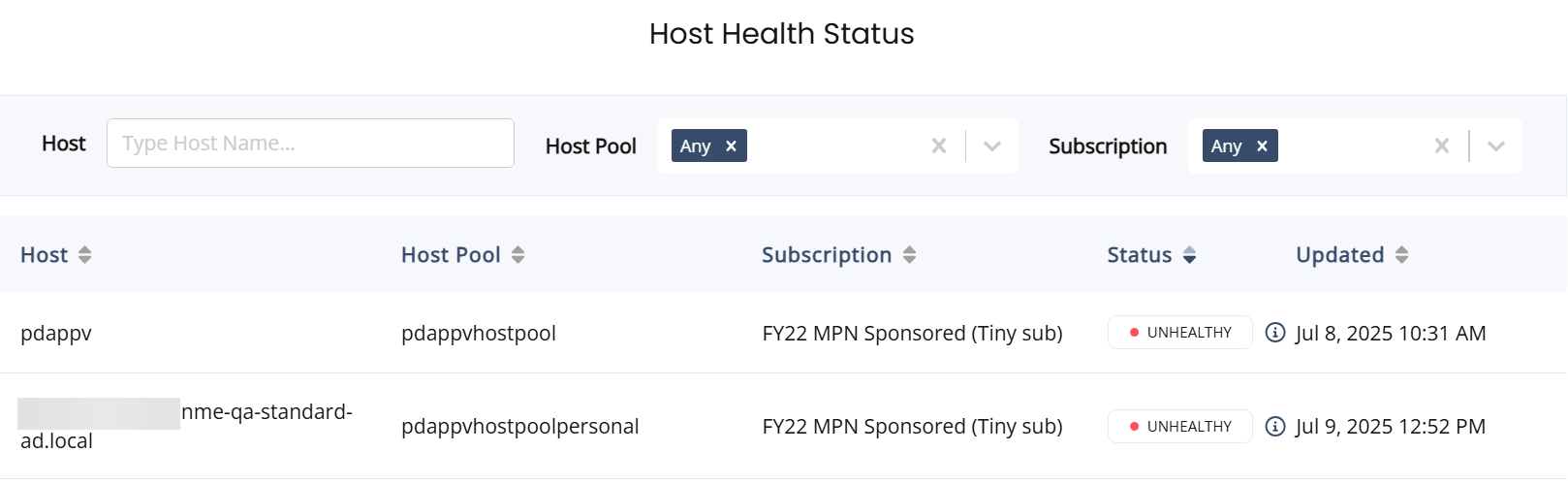

      Hosts

The hosts status indicator displays the current hosts, within any host pool, that are unavailable.

      Client Connectivity

The client connectivity status indicator displays desktop connectivity issues whereby a connection has been unsuccessful.

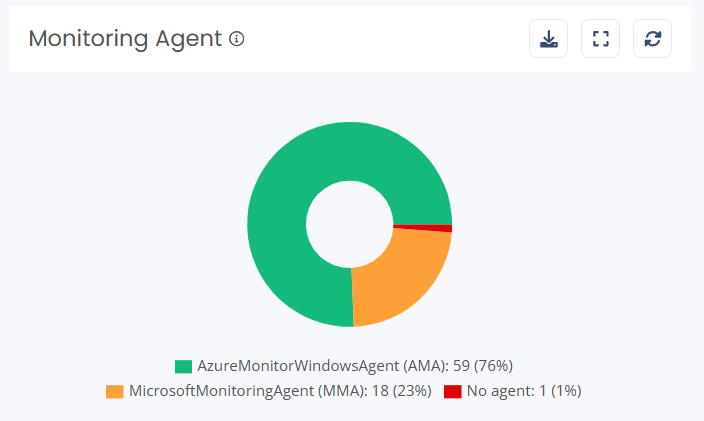

Monitoring agent

This dashlet identifies hosts running the Azure Monitor Agent, any hosts still running the legacy Microsoft Monitoring Agent, and hosts without any monitoring agent. Select a chart segment to view the corresponding host list.

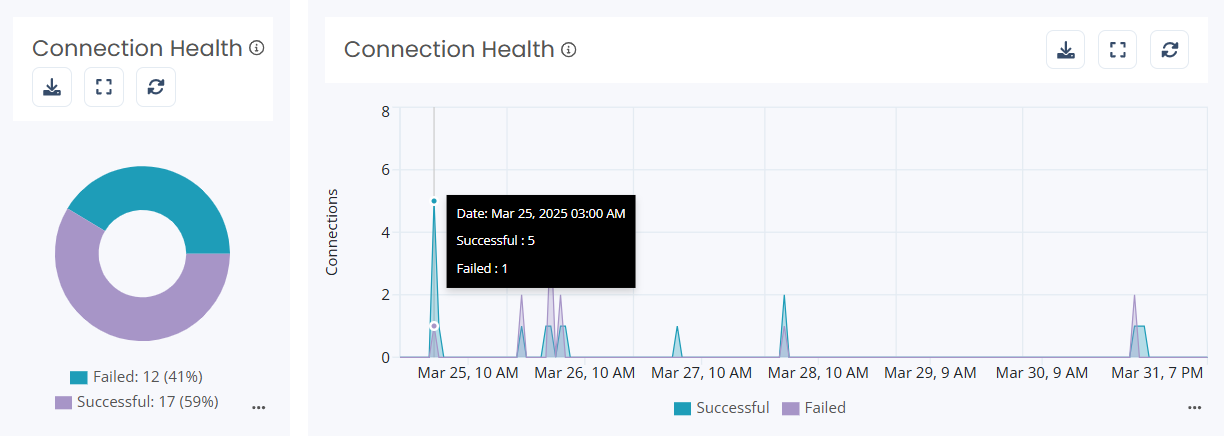

Connection health

This dashlet displays failed versus successful connections over the past seven days. The data is presented as a donut chart, displaying the number and percentage of failed and successful connections, along with a graph that provides details about the date and time of each failed or successful connection when you hover over a spike.

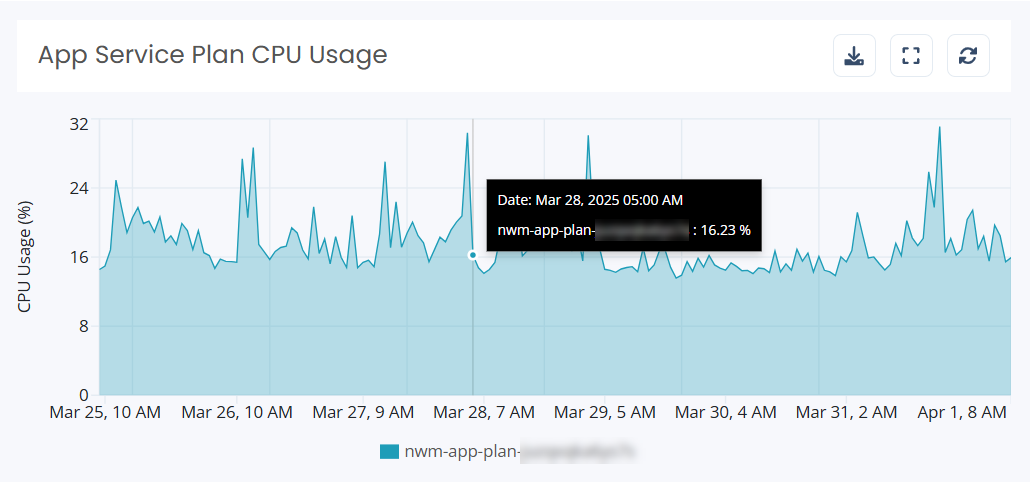

App Service plan CPU usage

This dashlet displays the CPU usage percentage for the Nerdio Manager App Service over the past seven days. Hover over a point on the graph to view the percentage details for a specific date and time.

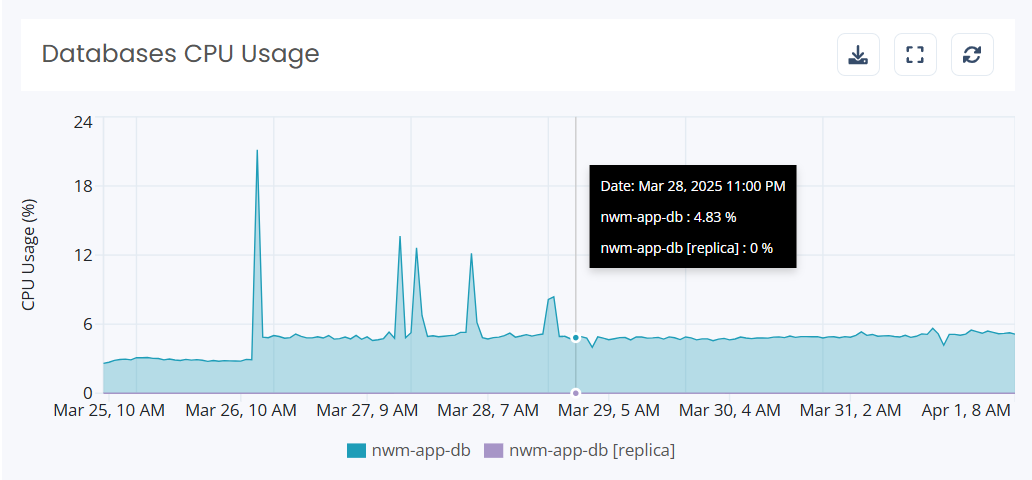

Databases CPU usage

This dashlet displays the CPU usage percentage for the Nerdio Manager databases over the past seven days. Hover over a point on the graph to view the percentage details for a specific date and time.

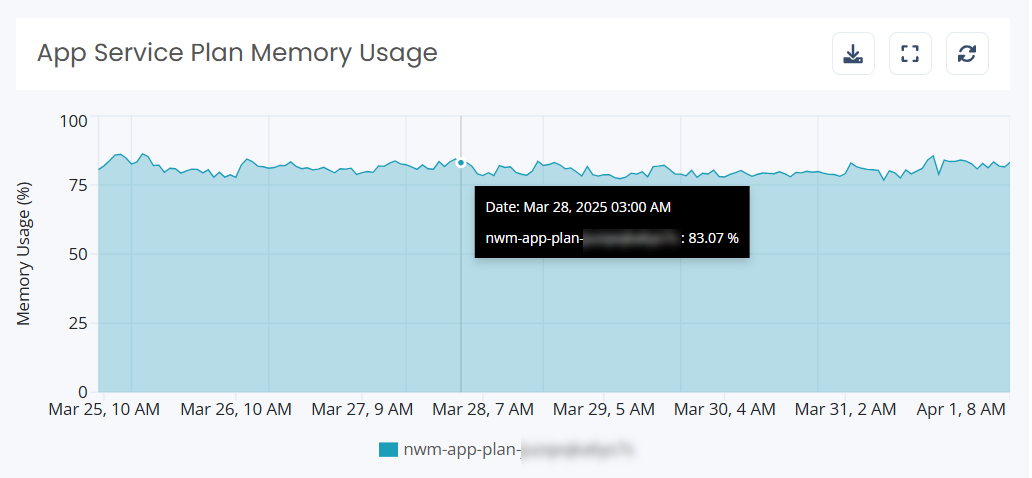

App Service plan memory usage

This dashlet displays the memory usage percentage for the Nerdio Manager App Service over the past seven days. Hover over a point on the graph to display the percentage details for a specific date and time.

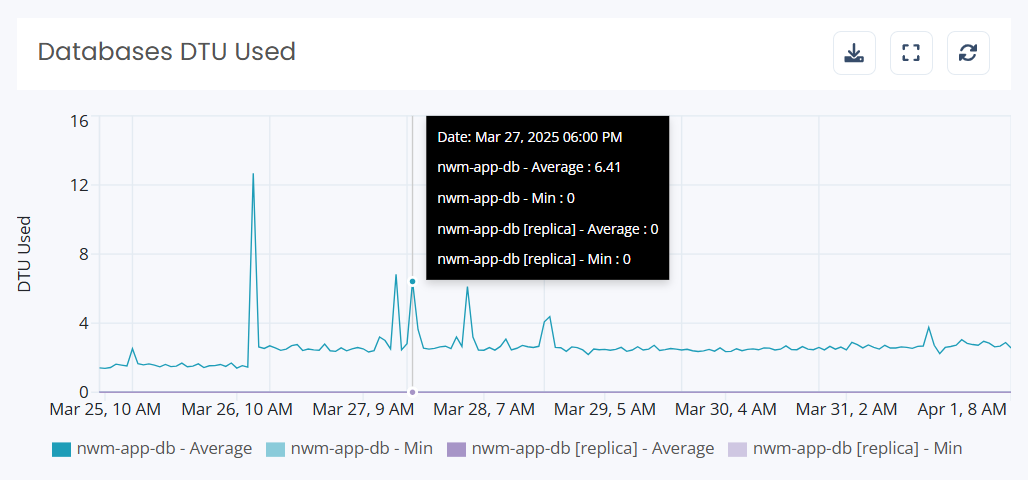

Databases DTU usage

This dashlet displays the Database Transaction Unit (DTU ) usage percentage for the Nerdio Manager databases over the past seven days.

Hover over a point on the graph to view the percentage details for a specific date and time.

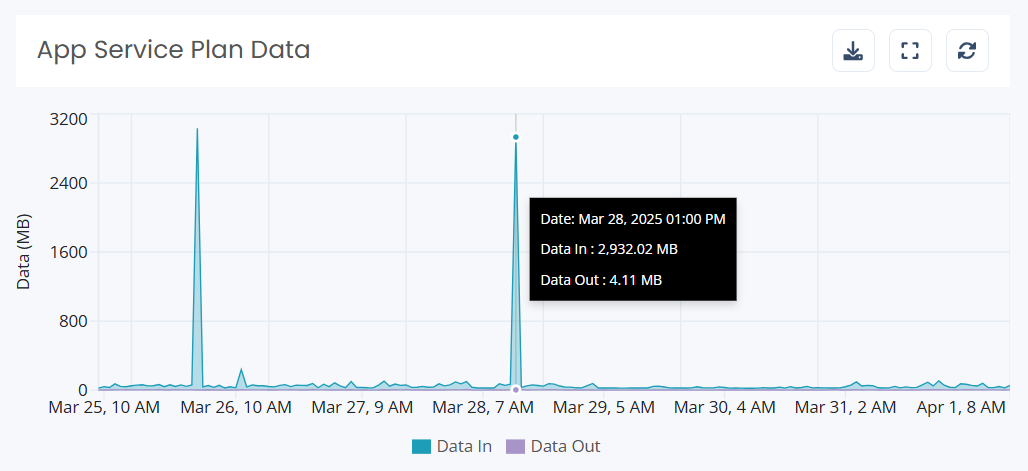

App Service plan data

This dashlet displays the data in and data out (in MB) for the Nerdio Manager service application over the past seven days. Hover over a point on the graph to view the data (in MB) for a specific date and time.

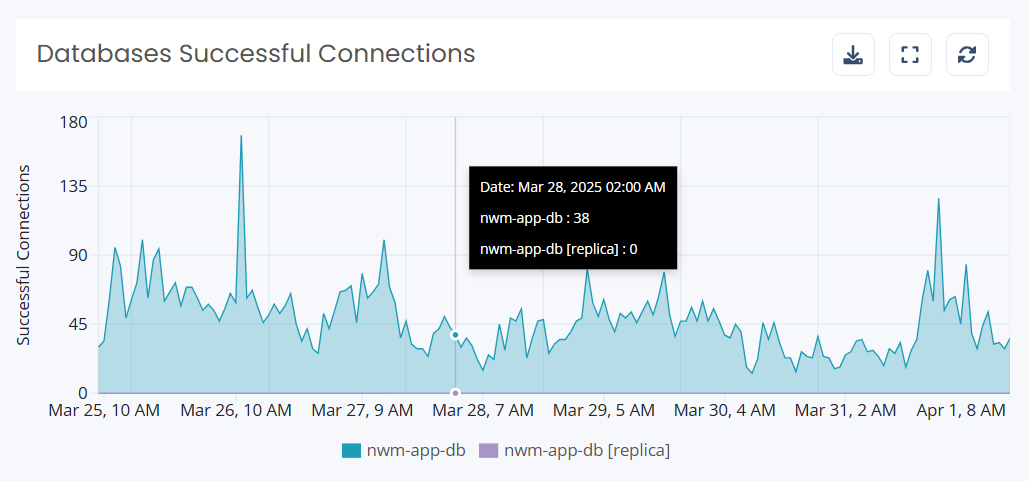

Databases successful connections

This dashlet displays the number of successful connections to the Nerdio Manager databases over the past seven days. Hover over a point on the graph to view the number of successful connections for a specific date and time.
